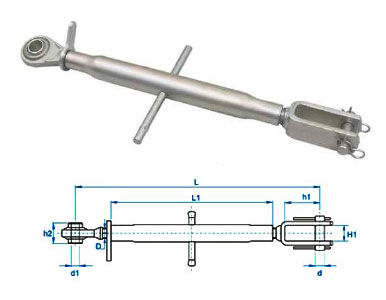

ADJUSTABLE LEVELLING ARM
CODE	L (MIN)	L (MAX)	L1	D	d	H1	h1	d1	h2
NKHALA0933	380	530	230	M24X3	18	24	72	19.0	44
NKHALA0934	380	530	230	M24X3	18	24	72	22.1	35
NKHALA0935	410	560	260	M24X3	18	24	72	19.0	44
NKHALA0936	410	560	260	M24X3	18	24	72	22.1	35
NKHALA0937	490	660	340	M24X3	16	24	72	22.1	35
NKHALA0938	520	690	380	M24X3	16	24	72	22.1	35

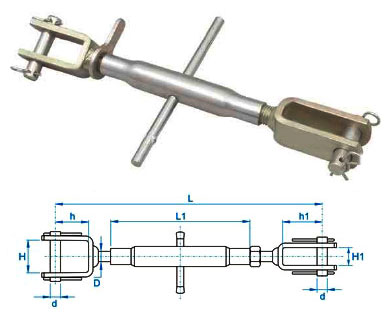

ADJUSTABLE LEVELLING ARM
CODE	L (MIN)	L (MAX)	L1	D	d	H	h	H1	h1
NKHALA0939	380	490	200	M22X2.5	18	30	60	24	72
NKHALA0940	450	600	260	M24X3	18	40	70	24	72
NKHALA0941	500	650	290	M27X3	18	40	70	24	72

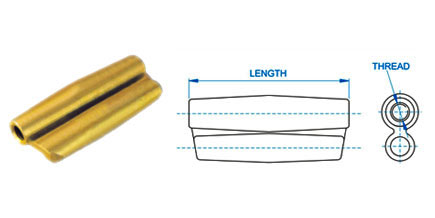

TURN BUCKLE
CODE	THREAD	LENGTH
NKHTBC0942	M16X2	140
NKHTBC0943	M20X2.5	140
