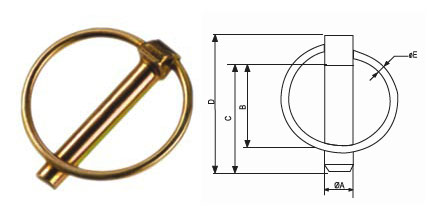

LINCH PIN
CODE	A	B	C	D	E
NKHLP0001	4.5	28.6	35	3	44
NKHLP0002	4.5	33	41	3	51
NKHLP0003	4.76	28.6	35	3	44
NKHLP0004	6	36.5	45	3.2	54
NKHLP0005	6	36.5	45	3.7BLACK	54
NKHLP0006	6.35	36.5	45	3.2	54
NKHLP0007	7	36.5	45	3.3	54
NKHLP0008	8	36.5	45	3.3	54
NKHLP0009	8	36.5	45	3.7BLACK	54
NKHLP0010	9	36.5	45	3.3	56
NKHLP0011	9.5	39	51	3.3	62
NKHLP0012	10	36.5	45	3.5	56
NKHLP0013	11	36.5	45	3.5	56
NKHLP0014	11	39	51	4.5BLACK	66
NKHLP0015	11	39	51	3.5	62

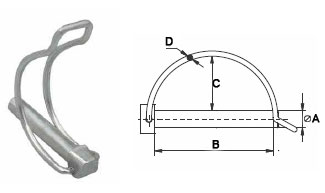

Linch Pins For Tube
CODE	A	B	C	D
NKHLPT0016	6	40	3	18
NKHLPT0017	6	45	3	22
NKHLPT0018	8	40	3	18
NKHLPT0019	8	45	3	22
NKHLPT0020	8	50	3	25
NKHLPT0021	10	50	4	25
NKHLPT0022	10	58	4	25
NKHLPT0023	12	58	4	25

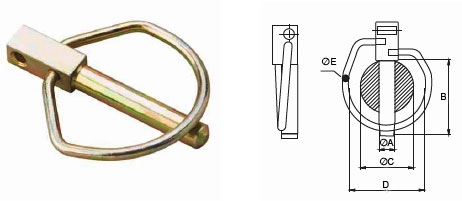

LINCH PIN DIN 11023
CODE	A	B	C	D	E
NKHLPT0024	4.5	32	25	31.00	2.50
NKHLPT0025	5.5	42	32	44.80	3.60
NKHLPT0026	7.5	42	32	44.80	3.60
NKHLPT0027	9.5	45	32	44.80	3.60
NKHLPT0028	11	45	32	44.80	3.60
NKHLPT0029	11	55	45	52.00	4.00
NKHLPT0030	16	60	45	52.00	4.00

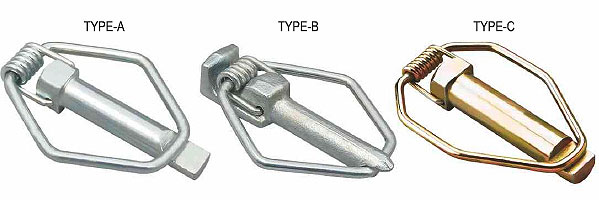

SPRING LINCH PIN
CODE	DIA	TYPE
NKHLPT0031	8.5	A
NKHLPT0032	10.5	A
NKHLPT0033	11	B
NKHLPT0034	15.5	C
