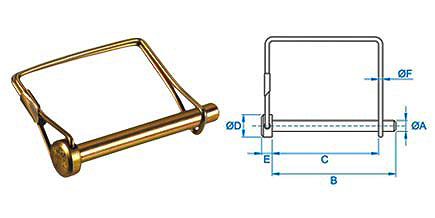

SHAFT LOCKING PIN / PTO PIN (SQUARE)
CODE	A	B	C	D	E	F
NKHPT0119S	6	53	45	12	6	2.5
NKHPT0120S	6	65	57	12	6	2.5
NKHPT0121S	8	65	57	15	7	2.5
NKHPT0122S	8	70	63	15	7	2.5
NKHPT0123S	12	75	67	20	10	2.3
NKHPT0124S	12	75	67	20	10	2.3
NKHPT0125S	12	75	67	20	10	2.3

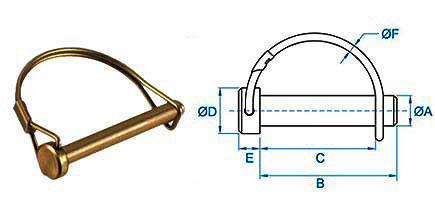

SHAFT LOCKING PIN / PTO (ROUND)
CODE	A	B	C	D	E	F
NKHPTO0126R	6	60	50	12	6	2.3
NKHPTO0127R	6	67	57	12	6	2.3
NKHPTO0128R	8	45	38	15	7	2.3
NKHPTO0129R	8	70	60	15	7	2.3
NKHPTO0130R	9.5	67	57	16	7.5	2.3
NKHPTO0131R	10	45	38	15	7	2.3
NKHPTO0132R	10	70	60	15	8.50	2.3

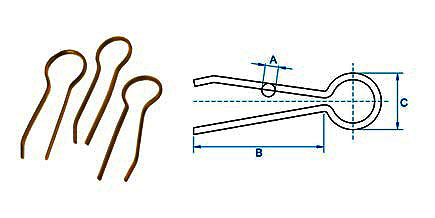

CLIP PINS
CODE	A	B	C
NKHCP0133	3X1.5	38	17
NKHCP0134	5X2.5	56	27

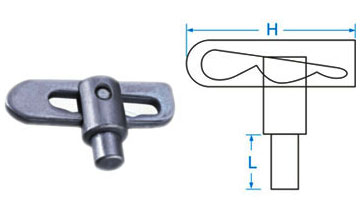

Drop Lock Pin Weld On Type
CODE	DIA. L mm	DIM. H mm
NKHDLP0135	13	70

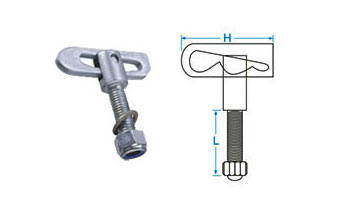

Drop Lock Pin With Long Screw
CODE	DIA. L mm	DIM. H mm	Thread
NKHDLP0136	35	70	1/2” UNF
NKHDLP0137	76	70	1/2” UNF
NKHDLP0138	38	50	MB x 1.25
NKHDLP0139	20	50	MB x 1.25
