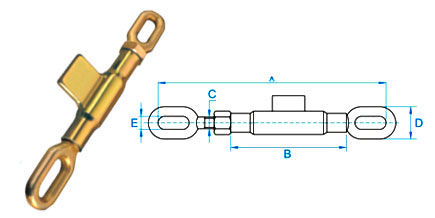

| STABLIZER ASSEMBLY | ||||||
| CODE | A MIN MAX |
B | C | D | E | |
| NKHSA1036 | 245 | 315 | 130 | M16X2 | 38 | 15 |
| NKHSA1037 | 245 | 320 | 135 | M18X2.5 | 38 | 15 |
| NKHSA1038 | 280 | 350 | 130 | M20X2.5 | 38 | 15 |
| NKHSA1039 | 280 | 350 | 150 | M22X2.5 | 38 | 15 |
| NKHSA1040 | 300 | 370 | 150 | M24X2.5 | 55 | 25 |
| NKHSA1041 | 300 | 370 | 150 | M24X2.5 | 55 | 25 |
| NKHSA1042 | 255 | 330 | 140 | M18X2.5 | 32 | 20 |

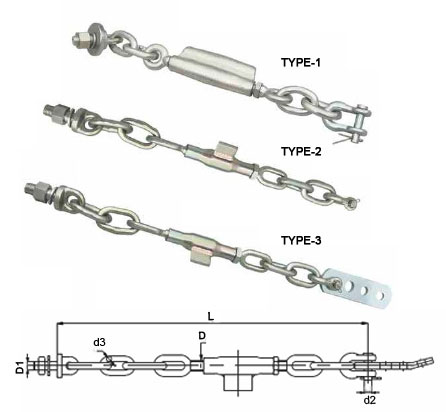

| STABLIZER CHAIN ASSEMBLY | |||||||
| CODE | TYPE | L-MIN | THREAD D |
D1 | D2 | D3 | N.O. LINK |
| NKHSCA1043 | 1 | 430 | 16X2 | 18X2.5 | 12 | 12 | 2+2 |
| NKHSCA1044 | 1 | 370 | 16X2 | 22X1.5 | 14-D | 12 | 1+1 |
| NKHSCA1045 | 1 | 520 | 16X2 | 18X2.5 | 12 | 12 | 3+3 |
| NKHSCA1046 | 1 | 450 | 16X2 | 22X1.5 | 14-D | 12 | 2+1 |
| NKHSCA1047 | 1 | 430 | 16X2 | 22X1.5 | 14-D | 14 | 1+1 |
| NKHSCA1048 | 1 | 570 | 16X2 | 18X2.5 | 12 | 12 | 4+4 |
| NKHSCA1049 | 1 | 370 | 16X2 | 22X1.5 | 14-D | 14 | 1+1 |
| NKHSCA1050 | 2 | 440 | 20X2.5 | 20X2.5 | 12 | 12 | 1+1 |
| NKHSCA1051 | 2 | 570 | 20X2.5 | 20X2.5 | 14 | 12 | 2+2 |
| NKHSCA1052 | 2 | 690 | 20X2.5 | 20X2.5 | 14 | 12 | 3+3 |
| NKHSCA1053 | 2 | 620 | 20X2.5 | 20X2.5 | 14 | 12 | 3+2 |
| NKHSCA1054 | 2 | 500 | 20X2.5 | 24X2.0 | 16 | 14 | 1+2 |
| NKHSCA1055 | 3 | 620 | 20X2.5 | 20X2.5 | 14 | 12 | 3+2 |
| NKHSCA1056 | 3 | 570 | 20X2.5 | 20X2.5 | 14 | 12 | 2+2 |

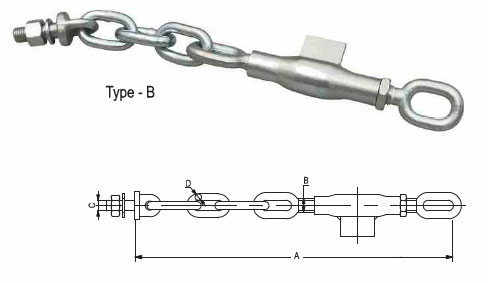

| STABILIZER CHAIN ASSEMBLY (TYPE B) | |||||
| CODE | A | B | C | D | N.O. LINK |
| NKHSCA1057 | 400 | M22X2.5 | M20X2.5 | 14 | 1 |
| NKHSCA1058 | 480 | M22X2.5 | M20X2.5 | 14 | 3 |
| NKHSCA1059 | 580 | M22X2.5 | M20X2.5 | 14 | 5 |
| NKHSCA1060 | 680 | M22X2.5 | M20X2.5 | 14 | 7 |
| NKHSCA1061 | 400 | M24X2.5 | M20X2.5 | 14 | 1 |
| NKHSCA1062 | 480 | M24X2.5 | M20X2.5 | 14 | 3 |
| NKHSCA1063 | 580 | M24X2.5 | M20X2.5 | 14 | 5 |
| NKHSCA1064 | 680 | M24X2.5 | M20X2.5 | 14 | 7 |

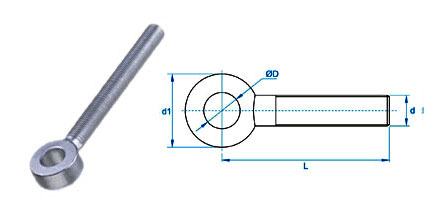

| Stabilizer Ends | ||||
| Testa Tonda | ||||
| CODE | L | D | d1 | D |
| NKHSE1065 | 97 | 16X2 | 46 | 18 |
| NKHSE1066 | 115 | 20X2.5 | 46 | 18 |
| NKHSE1067 | 115 | 22X2.5 | 50 | 20 |

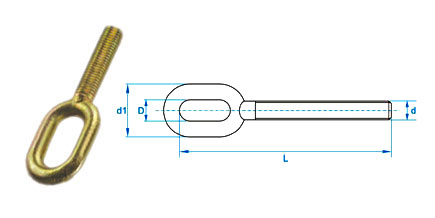

| Stabilizer Ends | ||||
| Testa Ad Asola | ||||
| CODE | L | D | d1 | D |
| NKHSE1068 | 122 | 18X2.5 | 39 | 14.5 |
| NKHSE1069 | 127 | 20X2.5 | 39 | 14.5 |
| NKHSE1070 | 134 | 22X2.5 | 55 | 2.5 |
