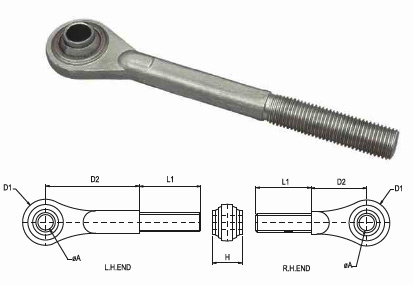

| TOP LINK END (HEAVY DUTY) | |||||||
| CODE | CAT | I.D. A |
THREAD D |
L1 | D1 | D2 | H |
| NKHTLE0824 | 2 | 25.4 | M30X3.5 R | 170 | 80 | 55 | 51 |
| NKHTLE0825 | 2 | 25.4 | M30X3.5 L | 170 | 80 | 55 | 51 |
| NKHTLE0826 | 3 | 32 | M40X3 R | 200 | 96 | 70 | 51 |
| NKHTLE0827 | 3 | 32 | M40X3 L | 200 | 96 | 70 | 51 |
| NKHTLE0828 | 2 | 25.4 | M42X3 R | 200 | 96 | 70 | 51 |
| NKHTLE0829 | 2 | 25.4 | M42X3 L | 200 | 96 | 70 | 51 |
| NKHTLE0830 | 3 | 32 | M42X3 R | 200 | 96 | 70 | 51 |
| NKHTLE0831 | 3 | 32 | M42X3 L | 200 | 96 | 70 | 51 |
| TOP LINK END (REPLACES FORD) | |||||||
| CODE | CAT | I.D. A |
THREAD D |
L1 | D1 | D2 | H |
| NKHTLE0832 | 1 | 19 | 1.1/4"UNC L | 128 | 58 | 208 | 44 |
| NKHTLE0833 | 2 | 25.4 | 1.1/4"UNC L | 128 | 76 | 208 | 51 |
| NKHTLE0834 | 2 | 25.4 | 1.1/4"UNC R | 168 | 76 | 86 | 51 |
