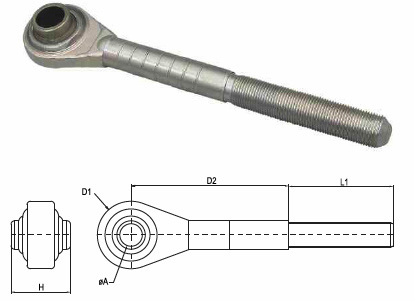

| TOP LINK END (REPLACES JD) | |||||||
| CODE | CAT | I.D. A |
THREAD F |
L1 | D1 | D2 | H |
| NKHTLE0835 | 2 | 25.4 | 1.1/8"UNC R | 145 | 66 | 162 | 51 |
| NKHTLE0836 | 1 | 20 | 1.1/8"UNC L | 160 | 66 | 56 | 44 |
| NKHTLE0837 | 2 | 25.4 | M27X3 R | 145 | 66 | 162 | 51 |
| NKHTLE0838 | 1 | 20 | M27X3 L | 160 | 66 | 56 | 44 |

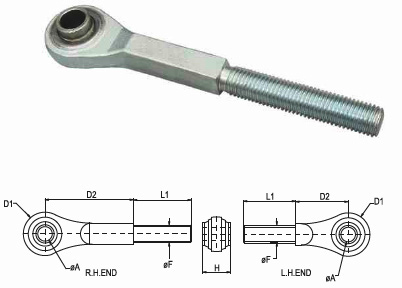

| TOP LINK END (REPLACES MF) | |||||||
| CODE | CAT | I.D. A |
THREAD D |
L1 | D1 | D2 | H |
| NKHTLE0839 | 1 | 19 | 1 1/16"UNF R | 128 | 58 | 167 | 44 |
| NKHTLE0840 | 1 | 19 | 1 1/16"UNF L | 128 | 58 | 167 | 44 |
| NKHTLE0841 | 2 | 25.4 | 1 1/16"UNF R | 128 | 66 | 167 | 51 |
| NKHTLE0842 | 2 | 25.4 | 1 1/16"UNF L | 128 | 66 | 167 | 51 |
| TOP LINK END (REPLACES MTZ) | ||||||
| CODE | I.D. A |
THREAD D |
L1 | D1 | D2 | H |
| NKHTLE0843 | 22.1 | M30(TPZ)RH | 165 | 75 | 56 | 51 |
| NKHTLE0844 | 22.1 | M30(TPZ)LH | 165 | 75 | 56 | 51 |
