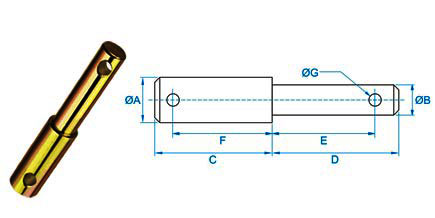

Implement Pin
Perno Universale
CODE	A	B	C	D	E	F	G	H
NKHIP0433	19	16	74	82	156	16.5	55	5
NKHIP0434	22	16	80	88	168	12	68	5
NKHIP0435	25	19	85	81	166	18	53	5
NKHIP0436	25	19	80	80	160	18	53	5
NKHIP0437	25	19	90	90	180	18	57	5
NKHIP0438	28	22	90	90	180	18	57	5
NKHIP0439	28	22	90	85	175	16.5	50	6
NKHIP0440	28	22	90	90	180	16.5	61	6
NKHIP0441	32	25	83	95	178	18	62	6.5
NKHIP0442	32	25	80	92	172	22	55	6.5

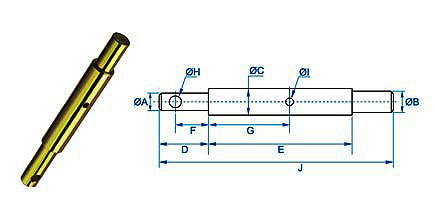

Inter Changeable Implement Mounting Pin
Perno Intercambiabile Per Attacco Attrezzi
CODE	A	B	C	D	E	F	G	H	I	J
NKHICIMP0443	22	22	28	55	115	40	67	12	6.5	200
NKHICIMP0444	25	22	28	55	115	40	67	12	6.5	200

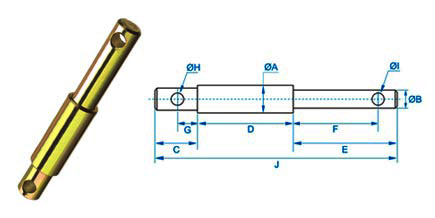

Double Implement Mounting Pin
Perno Doppio Intercambiabile Per Attacco Attrezzi
CODE	A	B	C	D	E	F	G	H	I	J
NKHDIMP0445	25	19	40	70	100	80	20	12	12	210
NKHDIMP0446	25	19	38	96	78	62	22	12	12	212
NKHDIMP0447	25	19	26	66	78	70	18	6.5	6.5	170
NKHDIMP0448	28	22	35	75	90	75	20	12	12	200
NKHDIMP0449	28	22	40	70	100	80	20	12	12	210
NKHDIMP0450	28	22	40	90	100	80	20	12	12	230
NKHDIMP0451	28.6	22.2	40	89	100	80	20	12	12	229
NKHDIMP0452	32	25	40	115	95	81	26	12	12	250
NKHDIMP0453	36.5	28	36	150	91	81	26	12	12	277
NKHDIMP0454	36.5	28	45	150	95	80	26	12	12	290

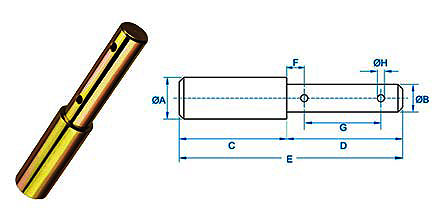

Weld On End Mounting Pin
Perno Doppio Da Saldarre Per Attacco Attrezzi
CODE	A	B	C	D	E	F	G
NKHWOMP0455	28	22	62.5	84.5	70.5	47	12
NKHWOMP0456	28	22	76.5	104.5	88	60	12
NKHWOMP0457	28	22	85	105	85	62	12
NKHWOMP0458	28	22	103	78	60	87.3	12
NKHWOMP0459	28	22	120	56	39	92	12
NKHWOMP0460	28.6	22	76	105	87.3	60	12
NKHWOMP0461	34	28	61	80	62	43.5	12
