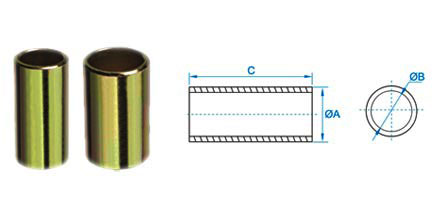

Replacement Bushes
CODE	ØA mm	ØB mm	C mm
NKHRB1097	19	16	41
NKHRB1098	22	16	35
NKHRB1099	25.4	19	41
NKHRB1100	25.4	19	50.8
NKHRB1101	28.4	22.2	44.5
NKHRB1102	28.4	22.2	63
NKHRB1103	28.6	22.2	35
NKHRB1104	28.6	22.2	44
NKHRB1105	28.6	22.2	50.8
NKHRB1106	32	25.4	50.8
NKHRB1107	36.5	28.6	44.5

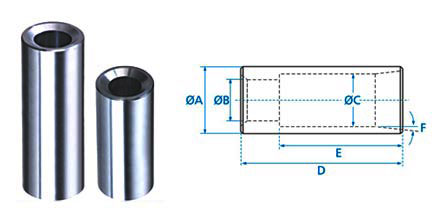

Tine Bushes
CODE	Outer ØA mm	Inner ØB mm	Inner ØC mm	Length D mm	Depth E mm	Angle F Ship	Weight kg.
NKHTB1108	38	25.4	31	95	74	4”30	0.3
NKHTB1109	40	23	25	105	78	5”	0.45
NKHTB1110	41	24	32	110	79	5”	0.51
NKHTB1111	41	25.4	30	108	80	5”30	0.5
NKHTB1112	45	25	0	110	0	5”	0.77
NKHTB1113	50	23	29	110	85	56”	1.8
NKHTB1114	50	25	29	110	85	6”	1.08
NKHTB1115	50	28	0	105	0	10”	1.05
NKHTB1116	50	30	36	108	80	5”30	0.76
NKHTB1117	50	30	39	110	84	6”	1.63
NKHTB1118	51	25	32	110	109	5”30	1.09
NKHTB1119	51	30	38	110	86	5”	0.76
NKHTB1120	55	32	0	120	0	4”30	1.24
NKHTB1121	57	12.59	40	120	105	5”30	0
NKHTB1122	33	0	14	63	46	3”	0.29
NKHTB1123	33	0	16.5	63	48	1.5”	0.28
NKHTB1124	45	22	28	97	75	5”	1.27
NKHTB1125	50	32	39	110	84	5.5”	1.02
NKHTB1126	60	32	39	110	84	5.5”	1.8
