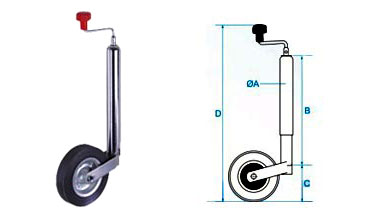

Jockey Wheel Parking Jack
CODE	A Pipe Diameter	Wheel Size	Pipe Length	B	C	D
NKHJWPJ1183	35	160x43	220	310	100	465
NKHJWPJ1184	42	200x50	195	390	120	590
NKHJWPJ1185	48	200x50	195	390	120	590
NKHJWPJ1186	48	250x85	175	420	150	625
NKHJWPJ1187	60	255x80	400	430	150	720
NKHJWPJ1188	60	220x70	500	560	350	1060

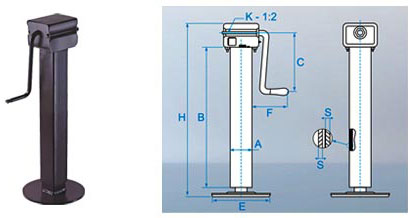

Parking Jack Heavy Type With Reduction Gear And Lateral Handle
CODE	Dim. A	Dim. B	Dim. C	E	F	H	S	STROKE	Static Cap.
NKHPJ1189	70	500	220	220	185	620	3	400	3000
NKHPJ1190	70	600	220	220	185	720	3	500	3000
NKHPJ1191	70	700	220	220	185	820	3	500	3000
NKHPJ1192	70	800	220	220	185	920	3	500	3000
NKHPJ1193	80	500	220	220	180	620	3	400	3000
NKHPJ1194	80	600	220	220	180	720	3	500	3000
NKHPJ1195	80	800	220	220	180	920	3	500	3000

Parking Jack “Light Type”
CODE	Dim. A	Dim. B	Dim. C	E	H	SE	SI	D	STROKE	STATIS CAP.
NKHPJ1196	40	360	115	95	500	2	2	18	250	400
NKHPJ1197	60	660	115	160	840	3	2	18	450	700
NKHPJ1198	50	460	115	160	610	3	2	18	250	600
NKHPJ1199	50	560	115	160	710	3	2	18	350	600
NKHPJ1200	60	460	115	160	610	3	2	18	350	700
NKHPJ1201	60	560	115	160	710	3	2	18	450	700
NKHPJ1202	70	460	180	160	640	3	3	22	350	1200
NKHPJ1203	70	660	180	160	840	3	3	22	500	1200
NKHPJ1204	70	660	180	160	840	3	3	22	500	1200
