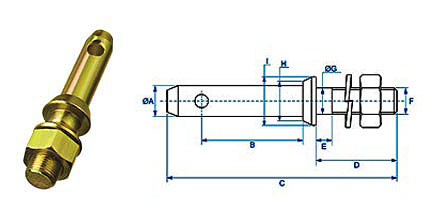

| Lower Link Pin | |||||||||
| Perno Per Attacco Attrezzi | |||||||||
| CODE | A | B | C | D | E | F | G | H | I |
| NKHLLP0326 | 22 | 50 | 130 | 40 | 5 | 20x1.5 | 20 | 32 | 38 |
| NKHLLP0327 | 22 | 50 | 140 | 40 | 14 | 22x1.5 | 22 | 20 | 38 |
| NKHLLP0328 | 22 | 50 | 140 | 40 | 14 | 22x1.5 | 28 | 30 | 38 |
| NKHLLP0329 | 22 | 51 | 149 | 54 | 11 | 7/8”UNF | 22 | 30 | 36 |
| NKHLLP0330 | 22 | 51 | 140 | 48 | 6 | 3/4”UNF | 19 | 30 | 36 |
| NKHLLP0331 | 22 | 51 | 140 | 43 | 11 | 5/8”UNF | 22 | 30 | 36 |
| NKHLLP0332 | 22 | 51 | 146 | 38 | 22 | 7/8”UNF | 28.6 | 30 | 36 |
| NKHLLP0333 | 22 | 51 | 146 | 50.8 | 9.5 | 7/8”UNC | 28.6 | 32 | 38 |
| NKHLLP0334 | 22 | 51 | 146 | 50.8 | 9.5 | 1”UNF | 25.4 | 30 | 36 |
| NKHLLP0335 | 22 | 51 | 138 | 38 | 14 | 7/8”UNF | 28.6 | 30 | 36 |
| NKHLLP0336 | 22 | 51 | 128 | 38 | 10 | 20x1.5 | 20 | 30 | 36 |
| NKHLLP0337 | 22 | 51 | 128 | 38 | 10 | 20x1.5 | 20 | 30 | 36 |
| NKHLLP0338 | 22 | 60 | 150 | 40 | 20 | 22x1.5 | 22 | 32 | 38 |
| NKHLLP0339 | 22 | 60 | 150 | 40 | 20 | 22x1.5 | 28 | 32 | 38 |
