Draw Bar ( 63x25 )
CODE	No of Holes	lift Arm Spacing A (mm)	HoleB (mm)	Pin C (mm)	Thickness D (mm)	Width E (mm)
NKHDB1005	7	508..00	16.00	15.50	16.00	50.00
NKHDB1006	7	508..00	19.50	22..00	25.40	63.00
NKHDB1007	11	660.40	19.50	22.00	25.40	63.00
NKHDB1008	11	660.40	19.50	28.00	31.00	75.00
NKHDB1009	13	812.80	19.50	28.00	31.00	75.00
NKHDB1010	13	812.80	19.50	28.00	31.00	75.00
NKHDB1011	11	660.00	19.50	22.00	30.00	63.00
NKHDB1012	7	812.80	29.00	28.00	31.00	75.00
NKHDB1013	5	965.20	32.00	36.00	45.00	90.00

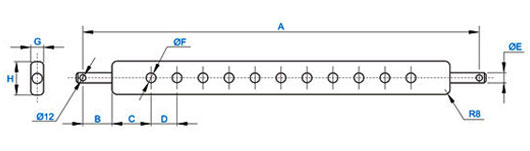

Draw Bar (63x30)
CODE	H	G	Holes	A	B	C	D	E	b
NKHDB1014	63	30	7	1003	60	181	80	28.5	25.4
NKHDB1015	63	30	7	683	49	113	54	22	20
NKHDB1016	63	30	9	758	49	114	54	22	20
NKHDB1017	63	30	9	781	60	114	54	28.5	20
NKHDB1018	63	30	7	962	60	181	80	28.5	28
NKHDB1019	63	30	9	796	57.5	125	55	21.6	22.2
NKHDB1020	63	30	9	800	70	113.3	54	28	22
NKHDB1021	63	30	11	766	60	60	54	28	20
NKHDB1022	63	30	11	945	60	114	60	28	22
NKHDB1023	63	30	9	800	58	118	22	22	22
NKHDB1024	63	30	9	800	126	51	70	28	22
NKHDB1025	63	30	11	765	52	60	54	22	22
NKHDB1026	63	30	11	781	60	60	54	28	22
NKHDB1027	63	30	9	770	55	110	55	22	20
NKHDB1028	63	30	9	770	55	110	55	28	20
NKHDB1029	63	30	3	440	55	110	55	22	20
NKHDB1030	63	30	11	766	53	60	54	22	20
NKHDB1031	63	30	11	780	60	60	54	28	20
NKHDB1032	63	30	3	440	57	110	54	22	19
NKHDB1033	63	30	9	800	70	114	54	28	22
NKHDB1034	63	30	11	810	60	75	54	28.5	20
NKHDB1035	63	30	9	620	50	71	47.5	22	26
