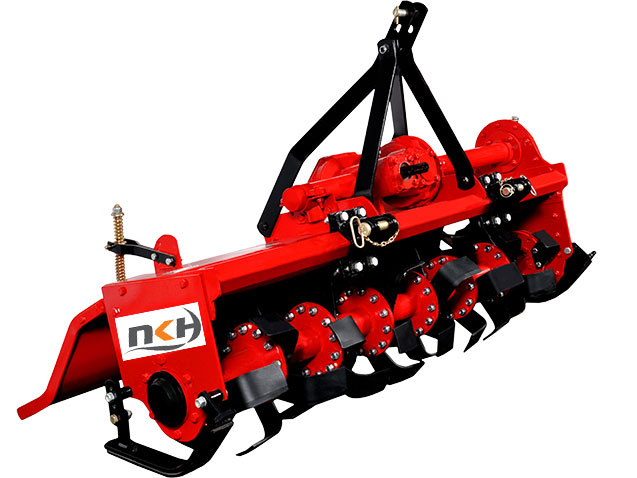

Multi Speed Gear Drive
FEATURES
  • Heavy Duty Gearbox
  • Robust Side Gears
  • Boron Steel Blades
  • CNC Machines Hubs & Axles
  • Extra Gears for adjusting according to variable Input RPM's
  • Heavy Duty PTO Shaft (with Shear Bolt)

  • SPECIFICATION
    DESCRIPTION CKRTMSG-5 CKRTMSG-6 CKRTMSG-7 CKRTMSG-8 CKRTMSG-9 CKRTMSG-10
    TILLAGE WIDTH(in mm) 1500 1750 2000 2250 2500 2750
    GEARBOX Multi Speed
    SIDE TRANSMISSION Gear Drive
    TYPE OF BLADE L Type
    NO. OF FLANGES 7 8 9 10 11 12
    NO. OF BLADES 36 42 48 54 60 66
    GEAR BOX
    OVERLOAD PROTECTION
    Shear Bolt
    WEIGHT (in Kgs. approx) 370 410 450 490 530 570
    TRACTOR POWER (in HP) 40-45 45-55 55-65 65-75 75-90 90 & above
