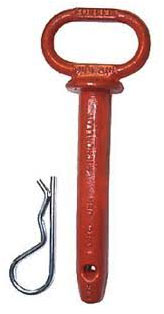

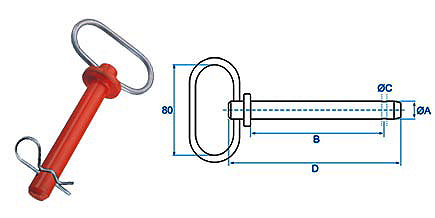

| Orange Hitch Pin With Hair Pin | ||||
| CODE | A | B | C | D |
| NKHHPWCLP0284 | 16 | 155 | 4 | 192 |
| NKHHPWCLP0285 | 19 | 104 | 5 | 141 |
| NKHHPWCLP0286 | 19 | 162 | 5 | 199 |
| NKHHPWCLP0287 | 22 | 168 | 5 | 205 |
| NKHHPWCLP0288 | 25.4 | 175 | 6 | 212 |
| FORGED HANDLE E-GRIP HITCH PIN | |||||
| E-GRIP CODE | PIN DIA. (IN) | PIN DIA. (MM) | USABLE LENGH (IN) | USABLE LENGH (mm) | Hair pin |
| B | B | A | A | CODE | |
| NKHFHEGHP0289 | 1/2 | 12.7 | 3 1/2 | 88.9 | LHP 25062 |
| NKHFHEGHP0290 | 3/4 | 19.05 | 4 | 101.6 | LHP 35084 |
| NKHFHEGHP0291 | 5/8 | 15.875 | 6 | 152.4 | SHP 35084 |
| NKHFHEGHP0292 | 3/4 | 19.05 | 6 1/4 | 158.75 | SHP 35084 |
| NKHFHEGHP0293 | 7/8 | 22.225 | 6 1/2 | 165.1 | SHP 45090 |
| NKHFHEGHP0294 | 1 | 25.4 | 6 3/4 | 171.45 | SHP 45090 |
| FORGED HANDLE HITCH PIN | |||||
| CODE | PIN DIA. (IN) | PIN DIA. (MM) | USABLE LENGH (IN) | USABLE LENGH (mm) | Hair pin |
| B | B | A | A | CODE | |
| NKHFHHP0295 | 1 1/8 | 28.575 | 7 | 177.8 | LHP 45090 |
| NKHFHHP0296 | 1 1/4 | 31.75 | 7 | 177.8 | LHP 45090 |
| NKHFHHP0297 | 1 3/8 | 34.925 | 7 | 177.8 | LHP 45090 |
| NKHFHHP0298 | 1 1/2 | 38.1 | 8 | 203.2 | LHP 45090 |

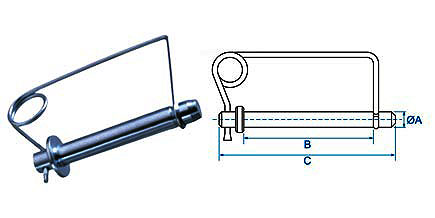

| Wire Lock Hitch Pin | |||
| Perno Con La Serratura Del Legare | |||
| CODE | A | B | C |
| NKHWLHPO299 | 12 | 102 | 140 |
| NKHWLHPO300 | 16 | 102 | 140 |
| NKHWLHPO301 | 19 | 102 | 140 |
| NKHWLHP0302 | 19 | 152 | 190 |
| NKHWLHPO303 | 22 | 152 | 190 |
| NKHWLHPO304 | 25 | 152 | 190 |
